Description

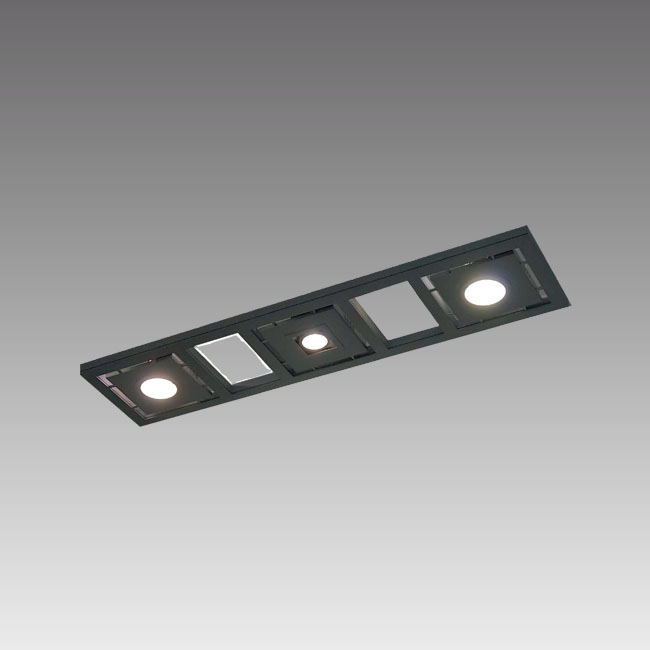

An architectural stylised profile pendant available in custom lengths and configurations. Two standard versions catalogued for market delivery & design inspiration. One with linear 3 array adjustable tilt spotlights, the other with 2 spotlights and a centralised 2 x 18W TC-L opalised ambient downlight. Utilises high output LED 34º beam for spotlighting using 2000lm high quality superior commercial grade Philips “Fortimo SLM ” series LED for ultimate confidence or metal Halide in 35W/70W in optional 24º, 34º & 44º beams. Available in optional 3000K or 4000K White LED’s with highly polished performance reflector. Full photometrics and calibrated heat sink for reliability and full warranty. Ideal for high quality down spot lighting of energy efficient areas. Integral gear.

Options

Product Purpose & Meaning

Vela Punti [Vee-La Pun-Tee] is characterised by a shallow 48mm profile and powerful spotlights. It is available in many configurations to design and to order. Two standards versions enable fast-tracking to market. The name “Vela Punti” is derived from the Italian meaning “Sail Spots”.  The product is born out of the need for a standard suspension for general ambient lighting and spotlights and is particularly useful in large open spaces.

Construction & Finishes

Aluminium extrusion in 48mm profile with sheet steel parts housing, LED with cast aluminium heat sink. Reflector in high output spun Aluminium. Finish in painted Aluminium with custom RAL options.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING

Downloads

Data Sheet
