News headline

Description

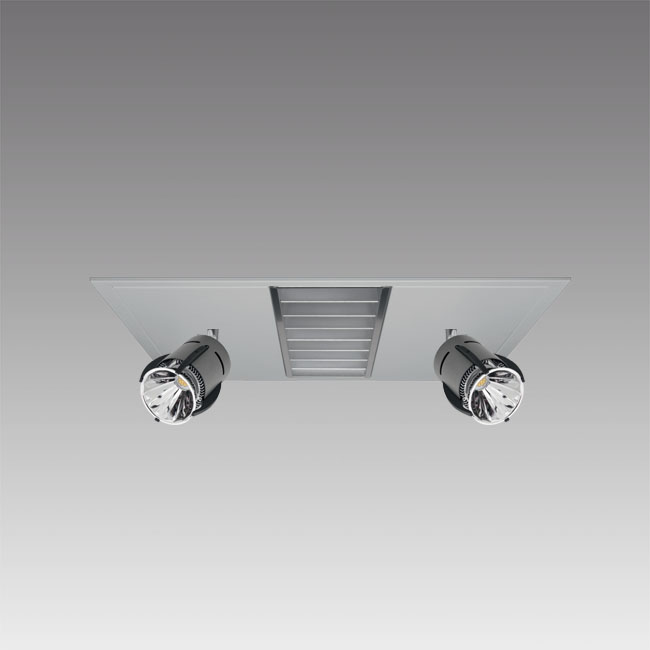

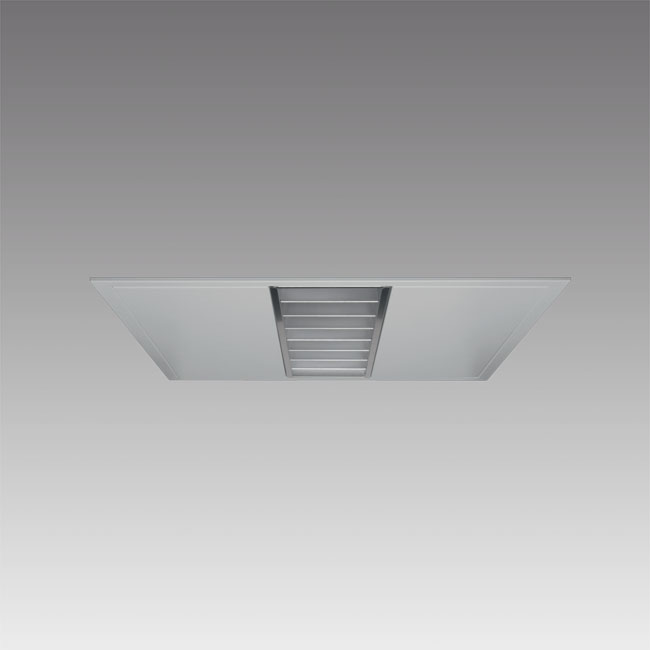

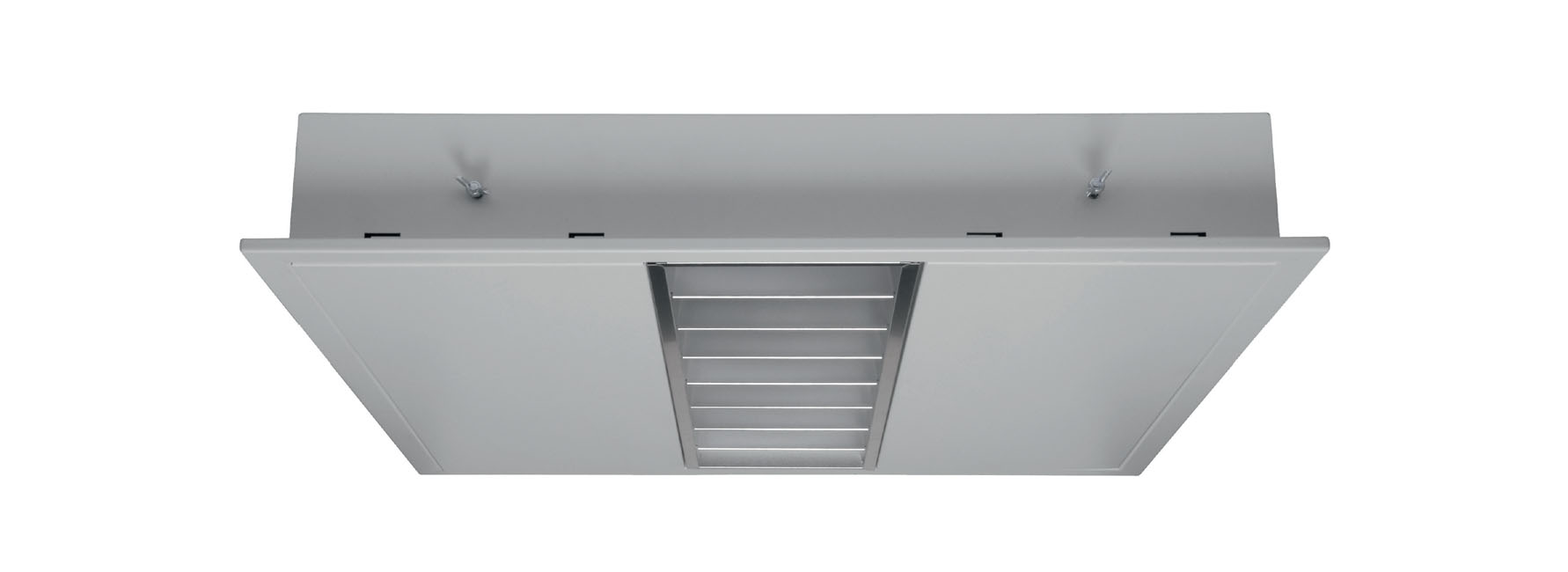

A 600 x 600 modular office luminaire for performance direct component lighting of working spaces. Uses flush closed side panelling with advanced technoprismatic fluxidrive™ light controller diffuser at competitive market pricing. Prismatic Fluxidrive™ technology offers smooth light anti-glare control with volumised light appearance and high output ratios. Alternative light controller in cross-blade cell louvre.  Both versions with optional 50º tilt spotlights - as for GLIMA series shown on page 152-153, utilising high output LED with maximum 1500lm high quality superior commercial grade Philips “Fortimo SLM ” series LED for ultimate confidence. LED available in optional 3000K-4000K. Full photometrics and calibrated heat sink for reliability. LED designed in medium  34º beam. Alternative LED surface suspended spotlight - “JEWEL” as shown on page 221, as well as metal halide eyeball as for luminaire GLIMA - shown on page 153. Integrated gear on all lamp types.   Suitable for lay-in modular T-Bar ceilings in 600x600 plaster board fixings [add post-fix to order code]. Versions for plank and clip-in ceiling tiles on request.

Options

Product Purpose & Meaning

The Giotto XS products provides clean lines with the use of optional discreet built in spotlights. This minimises lighting points, reduces install costs, enables wall perimeter lighting, as well as lighting of notice boards, artwork & friezes.The name “Giotto XS” [Jott-o] is a tribute to the Italian artsist and architect who appreciated the power of light for his “art”.

Construction & Finishes

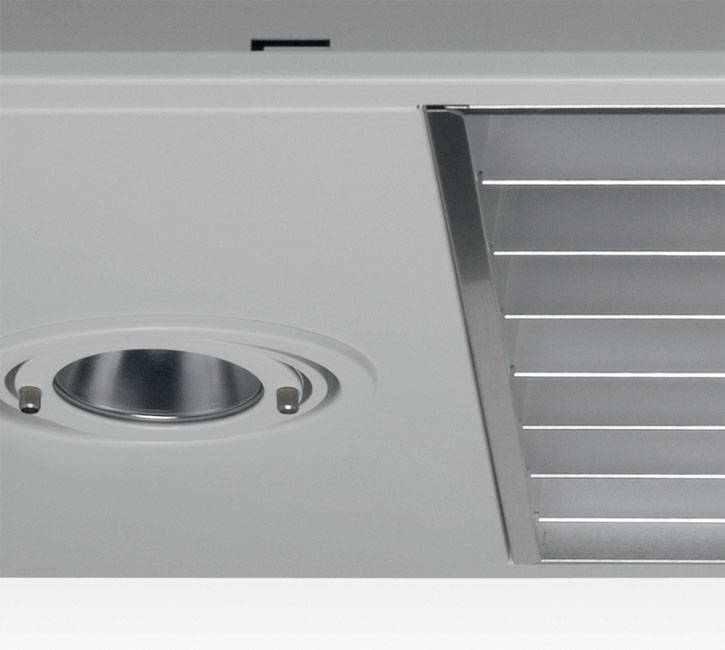

Pressed formed steel & aluminium housing and bezel with LED spotlight units with cast aluminium heat sink. Reflector in high output spun Aluminium. Standard finish in painted white Custom RAL options. Fluxidrive technoprismatic [option in PC to Tpa >850ºC]

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING

Downloads

Data Sheet
