Description

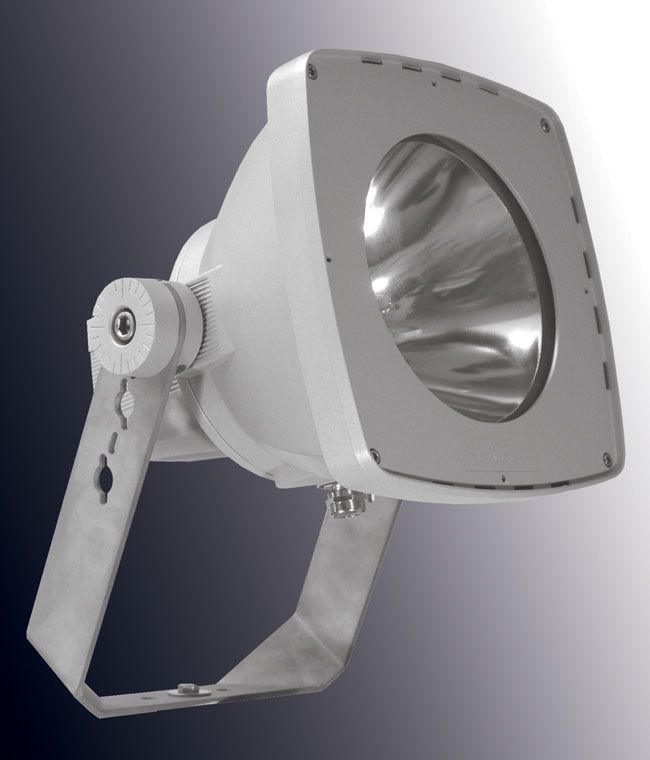

A highly flexible beam projector available in 2 sizes up to 250W metal halide. Offering a conical pencil 7º beam reflector also capable with additional optics [reeded glasses] of producing a soft spot to 12º, a wide 49º or medium and wide elongation [14ºx 28º/6º & 46º] beams. A symmetric reflector of 10ºx58º also capable of producing beam elongation in 10ºx67º. An asymmetric reflector 22x32º. [All beams adjustable in any plane and configurable whilst in operation.] Other features include a calibration gonimeter angle adjustment guide, memory tilt lock off and a hinged lid. With multiple accessories for superior light control and mounting the neutral aesthetics compliment many architectural styles.

Options

Product Purpose& Meaning

Xperio was founded on the basis of easy multiple optics and easy set up with memory lock. The “XPERIO” takes it name from its lighting design herit age and being designed by “experienced” lighting people.

Construction & Finishes

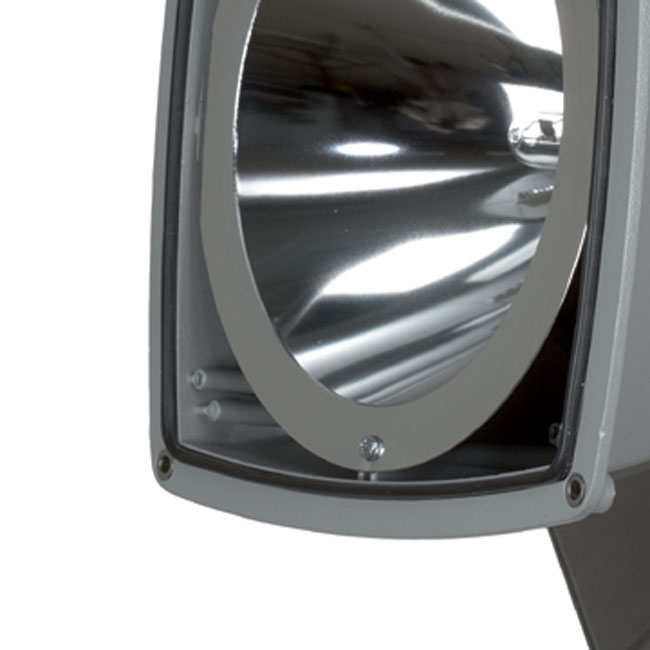

Die-cast quality aluminium alloy UNI EN AB46100. Chromium treated. Toughened 4mm glass front lens. Highly polished reflectors to 99.98% purity. Stainless steel fixings, screws & stirrup bracket. Finished painted polyster powder Aluminium 9006. Custom RAL options including local government colours.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
LUMENS/WATT
IP RATING

Downloads
