News headline

Description

A lighting designers interior tool for specific angular approach to difficult high level lighting treatments. A cantilevered arm luminaire with fully adjustable tilt spotlight for full lighting directional aim. An“ultra-orientate” version also possible with 300º+ pivot mount point for rotation set up and alternative ball- knuckle joint mount for inclined offset angles. Additional ladder spotlights can be added. Ideal for large volume ceiling display areas and directional angular lighting treatments. Configured in high output 2000lm high quality superior commercial grade LED medium beam downlight with the highly acclaimed Philips “Fortimo SLM ” series LED for ultimate confidence. Available in optional 3000K to 4000K white LED’s with highly polished performance reflector. Full photometrics and calibrated heat sink for reliability. LED configured in medium 34º beam. Integral driver for direct mains power and optional DALI Touch on-board. Metal Halide option in 35W / 70W in optional 24º, 34º & 44º beam angles. QR111 halogen in standard beams. This luminaire is open to full customisation to twist, orientate, tilt and triangulate with the surface to be lit. A lighting designers tool.where articulation and flexibility is a must .

Options

Product Purpose & Meaning

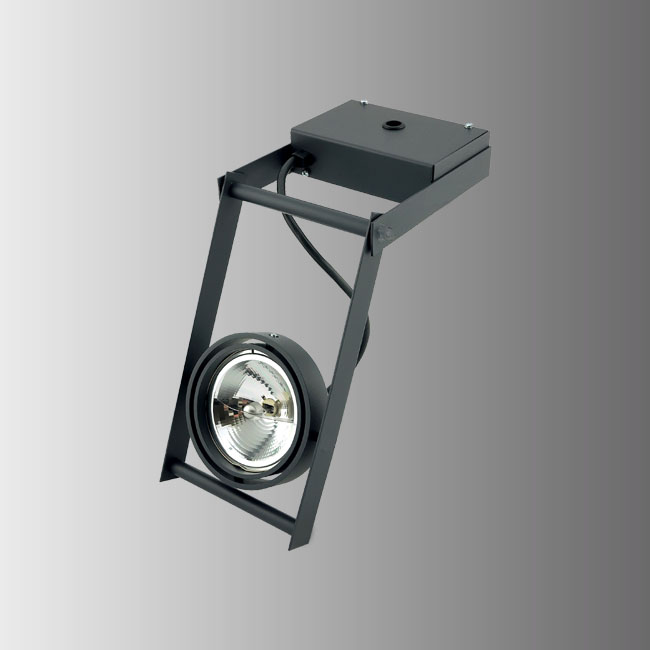

The Ladda LED surface mounted spotlight is an articulation lighting designers tool to get light to seemingly impossible places. The name “LADDA” is an abbreviation of English word - “ladder”, reflecting the fittings form and function.

Construction & Finishes

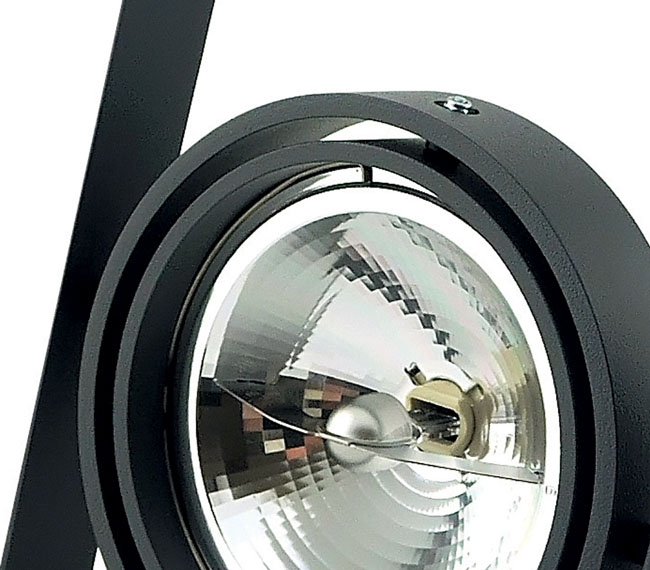

Pressed formed steel chasis and bezel with cast Aluminium heat sink. Reflector in high output spun Aluminium. Finish in painted Aluminium with custom RAL options.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING

Downloads
