Description

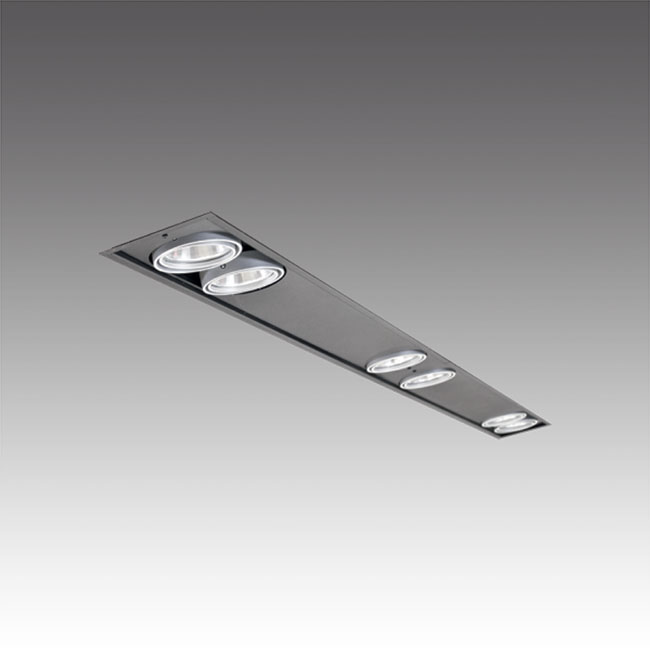

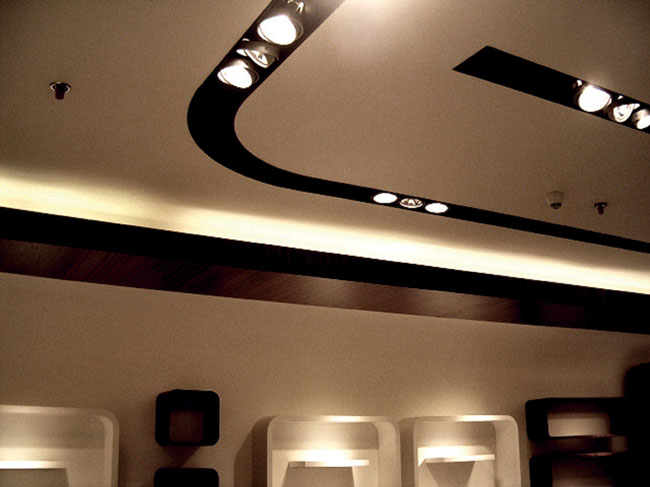

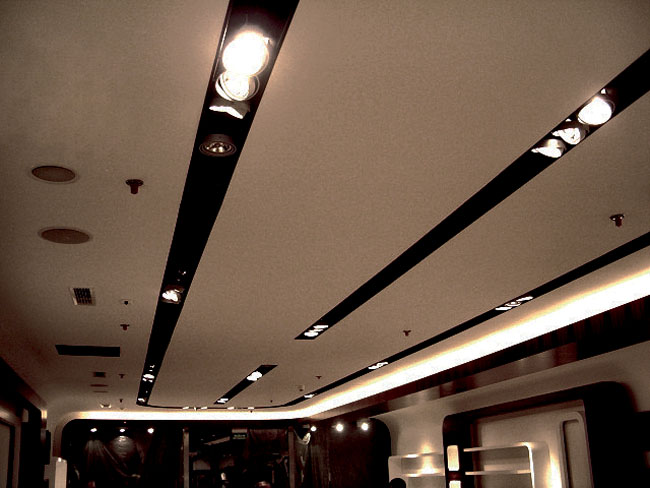

An architectural linear recessed system of adjustable tilt spot LED downlights. “Black-out” rebate channel for continity effect creating integrated light architecture with hidden gear cabling. System flexibile to custom shapes, curves, variable sizes and light source combinations gives the professional lighting designer ultimate spotlighting control with minimal intrusion to architecture. Utilises high output LED for spotlighting using 2000lm high quality superior commercial grade Philips “Fortimo SLM ” series LED for ultimate confidence. Available in optional 3000K or 4000K White LED’s with highly polished performance reflector. Full photometrics and calibrated heat sink for reliability. LED designed in medium 34º beam. Metal Halide option to 35W/70W in 24º, 34º & 44º beam angles. Ideal for high quality down spot lighting of energy efficient areas. Integrated gear on all lamp types. Channel can also be finished in white or aluminium, or any RAL colour. A hidden linear halo effect can be added when combined with the product -“Stripled Flexi” shown on page 123.

Options

Product Purpose & Meaning

Linea-Noir was born out the need for an apparent continuous aethetic channel for recessed spotlighting. The name “LINEA-NOIR” is derived from the Italian Nera Linea meaning

Constructions & Finishes

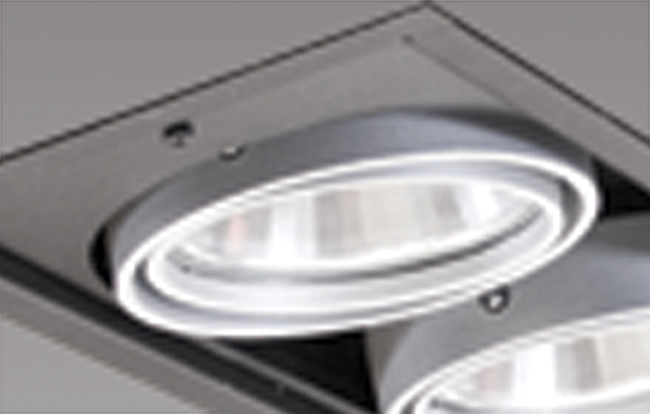

Pressed formed steel & aluminium housing and bezel with light units with cast aluminium heat sink. Reflector in high output spun Aluminium.  Standard finish in painted Matt Black Aluminium with custom RAL options.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING

Downloads
