Description

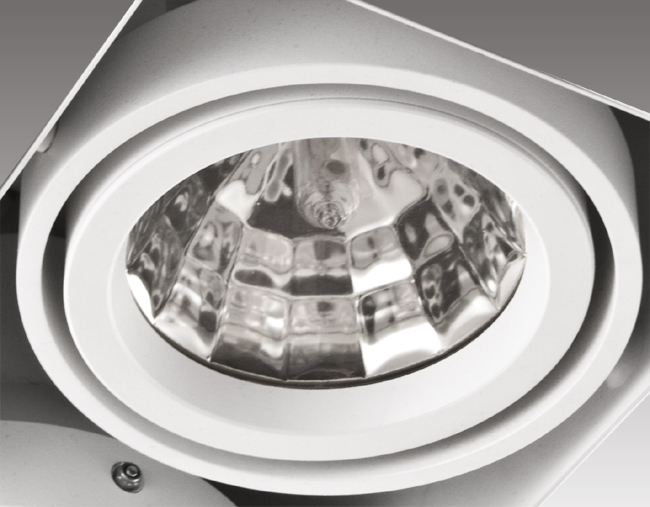

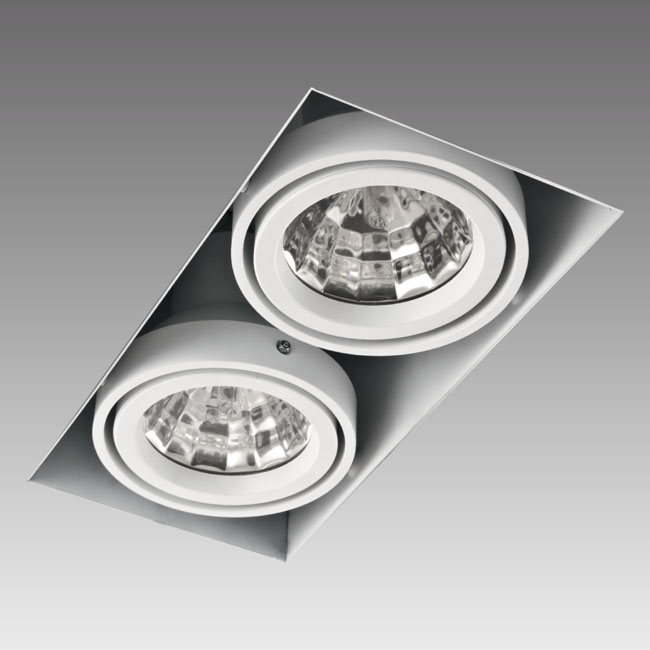

Architectural minimalism in trimless square recessed downlights for plaster refinishing. Units with adjustable tilt to 50º with full rotation and orientation. Two standard versions in singular and twin array [Others on request]. Utilises high output LED for spotlighting using 2000lm high quality superior commercial grade Philips “Fortimo SLM ” series LED for ultimate confidence. Available in optional 3000K or 4000K White LED’s with highly polished performance reflector. Full photometrics and calibrated heat sink for reliability and full warranty. LED designed in medium 34º beam. Ideal for high quality down spot lighting of energy efficient areas. Integral gear. Metal Halide in 35W or 70W in optional 24º, 34º & 44º beam angles.

Options

Product Purpose & Meaning

Dalla-Vista is a trimless ‘invisible’ plaster-in product with a ‘from immediate stock’ frame for initial install works. The name “DALLA VISTA” is from the Italian meaning “fromview” or appropriately as “hidden from view”.

Construction & Finishes

Pressed formed steel & aluminium housing and bezel. LED with cast aluminium heat sink. LED with cast aluminium heat sink. Finish in painted Aluminium with custom RAL options.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING

Downloads
