Description

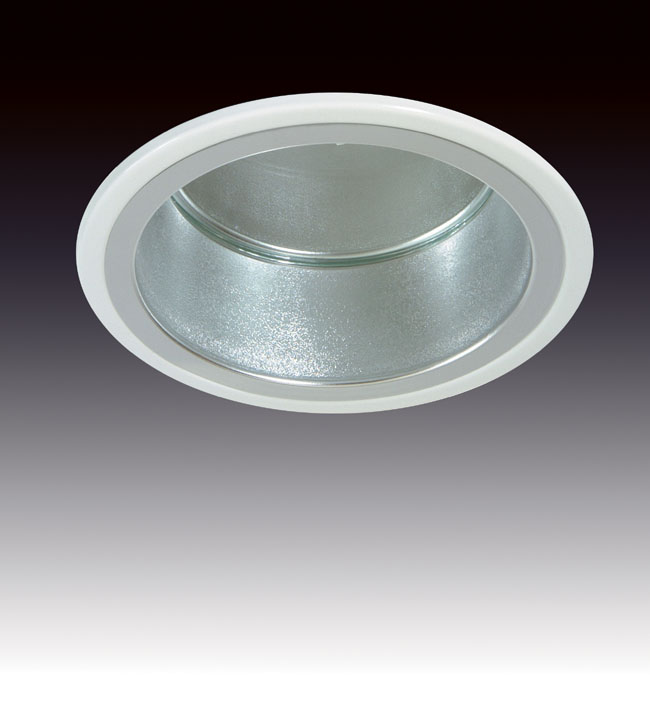

Revered for power this series of metal halide downlights are high performers on output. Three sizes of bezel 165,189mm & 224mm, with vertical burn lamps in conical beams or optional low height version with horizontal burn ceramic TD lamps. The more compact series 165 with 35W/70W lamps in 68º or 86º beam. The mid-series 185 uses larger lamps 70W/150W lamps in a conical 68º or ultra wide 130º beams. The larger 224 series offers a 51ºx 62º near conical beam, as well as a wall wash asymmetric option. All use ceramic CDM technology lamps with HF gear as standard. [ optional lower spec. compensated gear also available]. Gear comes complete with “fast plug’n connect” system for cost effective installation.This wide series of downlights has a select range of accessories - shown on page 162 - please consult our technical support for advice for applicable fitment.

Options

Product Purpose & Meaning

The Turbo series is distinguished by its low profile heights, broad range appeal, wide accessory range, IP rating options and cost effectivity. The name “Turbo” relates the products ability to perform.

Construction & Finishes

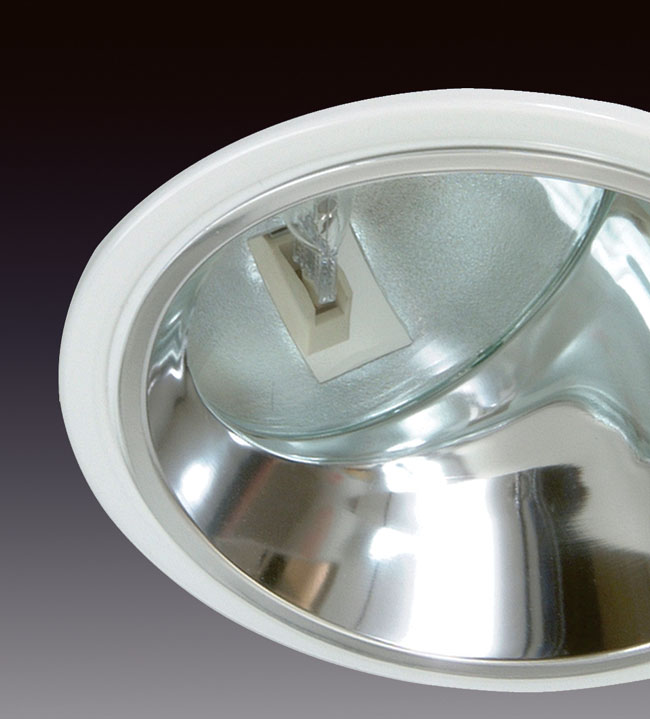

Pressed formed steel & aluminium housing and bezel. Reflector in vacuum metalised satinised or polished aluminium 99.8%.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING
