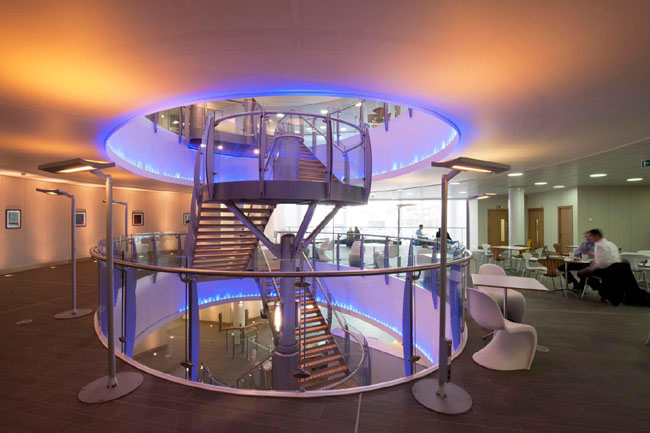

A lighting designers professional tool with the latest RGB full colour 5.3W or Mono 3W powerLED’s with on board circuitary and individual addressable chips for singular DMX control. Enabling chasing affects and / or dynamic light movement in single, single mixed or full RGB colours. With same or mixed optics [interchangeable flexibility]. A true theatrical lighting tool. Made for quick & easy plug & socket link-chain mounting in linear arrays with direct easy 24Vdc SELV [Safe Extra Low Voltage] powering. Ideal for internal applications of ceiling pelmets, alcoves, architectural soffits, floor troughs and internal architectural fabric. Wide-flood of 130º or with additional push-fit optics of Elliptical wall-wash 15ºx60º, Narrow 10º, Medium 25º & Wide 40º.  Variable cable connectors and spacing centres allows true infinite flexibility. Bulk PSU (Power Supply Units) for easy remote gear installation. Full photometrics available.

Options

Product Purpose & Meaning

The Archiled Links series concept is founded on its abilityto offer PowerLED boards with pitch flexibility, interchangeable  optics and the ability to resolve curved and straight line architecture alike. The name “Archiled” is derived from the products ability to follow and delineate interior architectural structure.

Construction & Finishes

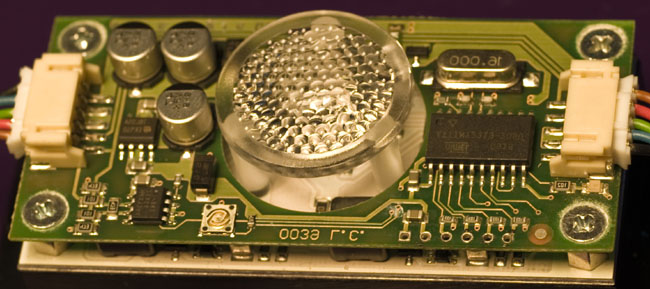

Double-tiered Printed Circuit Board - finished green. Extruded aluminium heat sink - anodised black finish. Clear optical lenses - Acrylic PMMA.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING

Downloads

Data Sheet
