Description

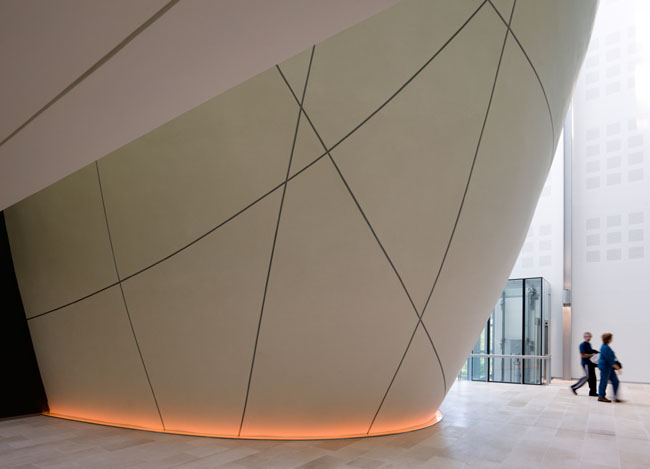

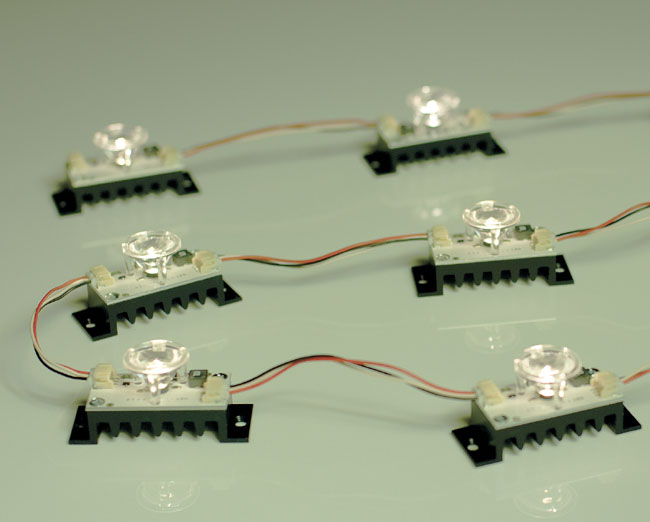

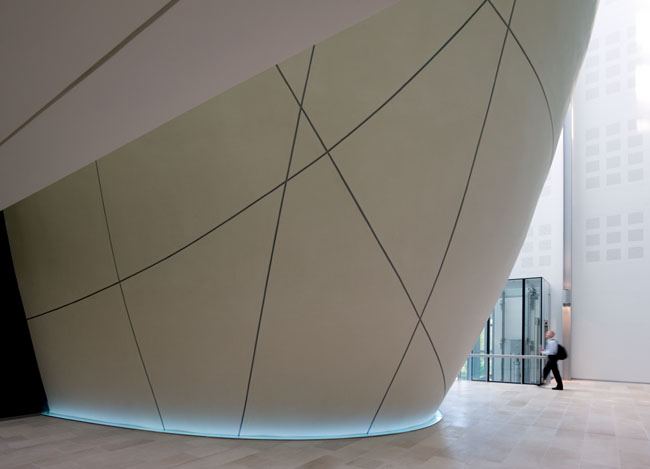

A lighting designers professional tool with the latest maximum lumen output 3W dimmable power LED’s mounted on professional grade high quality calibrated heat sinks for true 50,000hr long-life. Made for quick & easy plug & socket link-chain mounting in linear arrays with direct easy bulk 24Vdc SELV [Safe Extra Low Voltage] powering. Optional flexible PVC curved mounting channel for quick install - see accessories. Ideal for internal applications of ceiling pelmets, alcoves, architectural soffits, floor troughs and internal architectural fabric. Wide-flood of 130º or with additional push-fit optics of  Elliptical wall-wash  15ºx60º, Narrow 10º, Medium 25º & Wide 40º. Variable cable connectors and spacing centres allows true infinite flexibility. Bulk PSU (Power Supply Units) for easy remote gear installation. Full photometrics available. Holes for screw fixing, flat resin bonding or nut locking in PVC mounting channel where specified. A Lighting Designers Tool of Choice.

Options

Product Purpose & Meaning

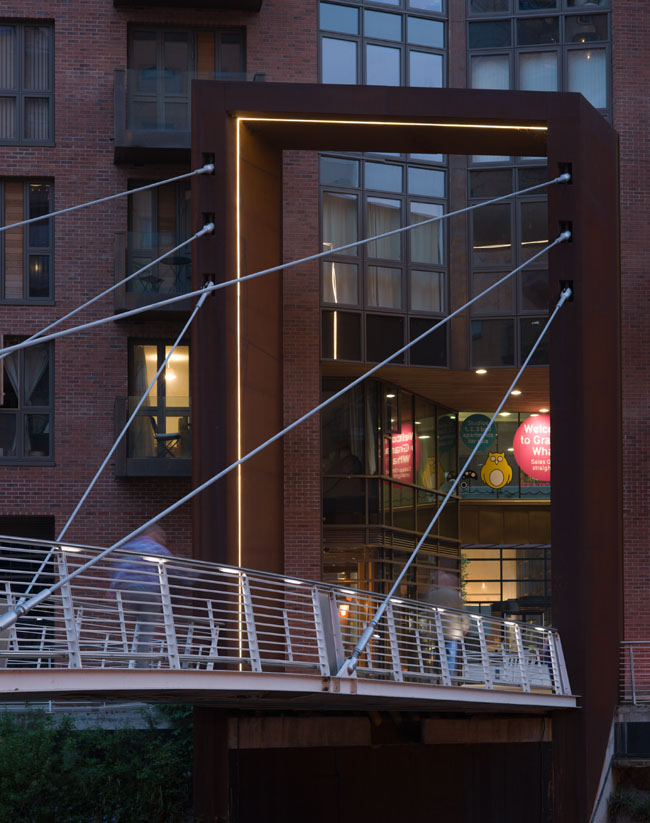

The Archiled Links series concept is founded on its ability to offer professional PowerLED boards with MacAdam colour consistency , pitch flexibility, interchangeable  optics and the ability to resolve curved as well as straight line architecture alike. The name “Archiled” is derived from the products ability to follow and delineate interior architectural structure.

Construction & Finishes

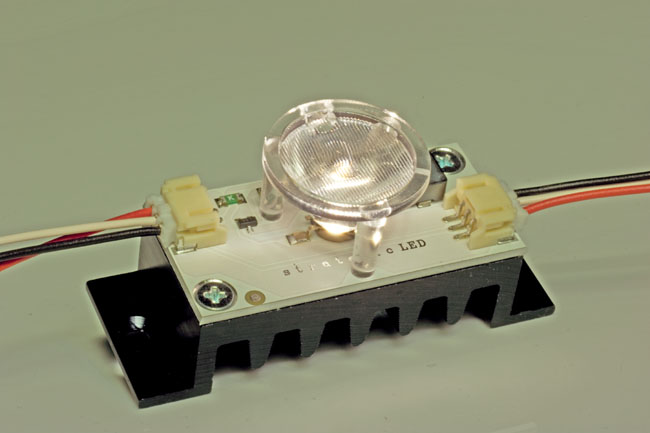

Printed Circuit Board - finished white. Extruded aluminium heat sink - anodised black finish. Clear optical lenses - Acrylic pmma.

Key Attributes

WATTAGE
CRI
VOLTAGE
LUMENS/WATT
IP RATING

Downloads

Data Sheet
